Single switch input

Step 1: Assembling the Project

Circuit Diagram

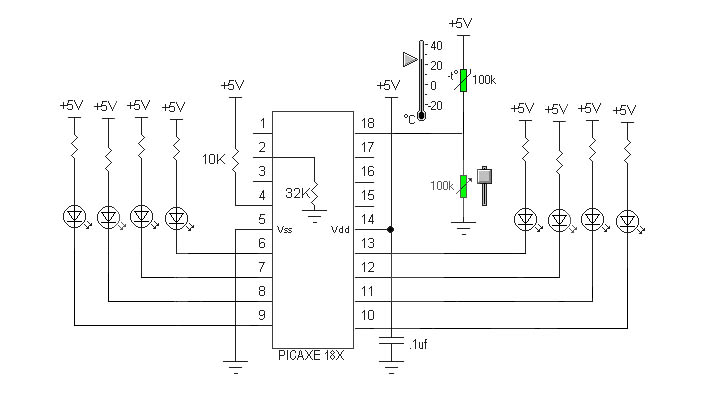

Above is the circuit diagram of how the circuit will be connected. There is a 32K resistor connectted from PIN2 to ground. This is required in all PICAXEs for reliable operation.
The LEDs are connected to PIN6 though to PIN13, these correspond to OUTPUT0 though to OUTPUT7 respectively.
