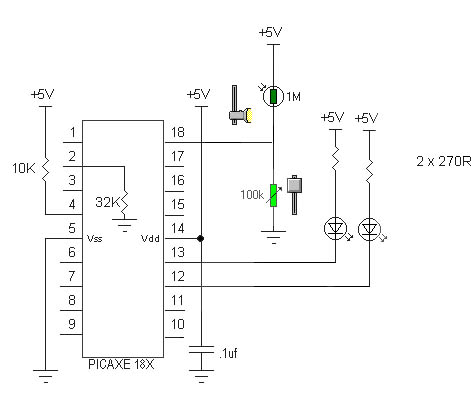

Circuit Diagram

This tutorial introduces applying analogue inputs into the PICAXE. This simple circuit uses an LDR setup in a potential divider circuit to switch between 2 LEDs. One LED when ambient light is above a certain level and another LED when ambient light is below that level.
