Circuit Diagram

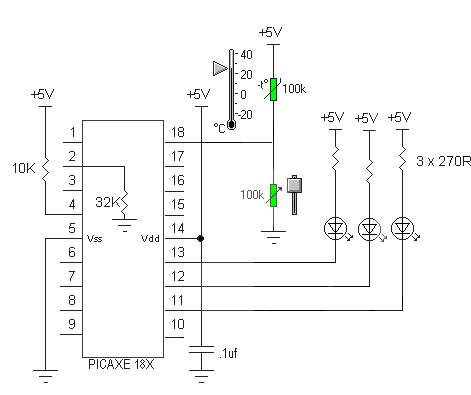

Above is the circuit diagram of how the circuit will be connected. There is a 32K resistor connected from PIN2 to ground. This is required in all PICAXEs for reliable operation.

The LEDs are connected to PIN13 though to PIN11, these correspond to OUTPUT7 though to OUTPUT5 respectively.

The thermistor circuit output is connected to PIN18, which corresponds to input 1. This is one of 2 input pins which do not have a preassembled grounding resistor on the developer board
